Name: Field_Office_Area

Display Field: GEOAREA

Type: Feature Layer

Geometry Type: esriGeometryPolygon

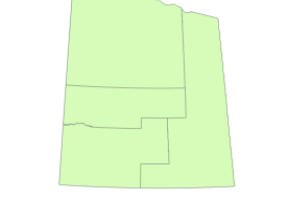

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains the boundaries of the four field office regions: Lloydminster (Area 1), Kindersley (Area 2), Swift Current (Area 3), and Estevan (Area 4), that deliver programs to support and regulate Saskatchewan's upstream oil and gas activities. The boundaries follow the Cadastre township grid for all field office areas except between the north portion of the Kindersley- Swift Current field office boundary where the South Saskatchewan River delineates the two areas. Field office programs uphold and enforce requirements specified under </SPAN><SPAN STYLE="font-style:italic;">The Oil and Gas Conservation Regulations </SPAN><SPAN>at the field level. Boundaries were chosen to manage field activities via the shortest travel distance to each field office. Activities include, a) enforcement of environmental and safety requirements, b) administration of spill, waste, and products storage management requirements, and c) inspection and enforcement of upstream oil and gas wells, facilities, and drilling rigs. The dataset was created as a file geodatabase feature class and output for public distribution.</SPAN></P></DIV></DIV></DIV>

Copyright Text: Staff of the Ministry of Energy & Resources. Any products derived from the use of the data provided by the Ministry of Energy and Resources Saskatchewan Mining and Petroleum GeoAtlas/GeoPlanner, must be cited with the layers and date used to create those products. The ‘GeoAtlas’ and 'GeoPlanner' contain information licensed under the Government of Saskatchewan Standard Unrestricted Use Data License (Version 2.0). For Example: Saskatchewan Mining and Petroleum GeoAtlas, Petroleum Field Office Areas, March 2021.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 133977.54
YMin: 5427364.44
XMax: 766069.21
YMax: 6306599.6558
Spatial Reference: 2151  (2957)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Tahoma
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• GEOAREA ( type: esriFieldTypeString, alias: GEOAREA, length: 15 )
• GEOAREANUM ( type: esriFieldTypeSmallInteger, alias: GEOAREANUM )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• SHAPE.AREA ( type: esriFieldTypeDouble, alias: SHAPE.AREA )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
