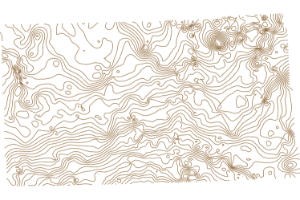

Name: groundwater_base_elevation_contours10m

Display Field: ZLEVEL

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains the elevation data (metres above sea level), on a 1km spaced grid for southeast Saskatchewan, that delineates the structure surface separating saline groundwater from groundwater that is considered to be fresh as defined by the OGCR. Currently, the structure surface extends from the southeast corner of the province from the Manitoba border to range 15 West of the 2</SPAN><SPAN><SPAN>nd</SPAN></SPAN><SPAN><SPAN> meridian, and from the international border with the U.S.A. to township 11. This surface has been mapped using stratigraphic data from existing Saskatchewan Water Security Agency (WSA) water well datasets and PNG licensed well data that were interpolated with a Kriging algorithm. The structure surface for the Base of Groundwater Protection represents the subsurface elevation that is 15m below the top of the Pierre Shale Formation (Bearpaw equivalent). The Base of Groundwater Protection was mapped 15m below the top of the Pierre Shale Formation (Bearpaw equivalent) in order to account for any misinterpolation from the Kriging algorithm. The surface was created as a file geodatabase feature class and output for public distribution.</SPAN></SPAN></P></DIV></DIV></DIV>

Service Item Id: db4b50661bb94f4aa84beaf07bd44bfd

Copyright Text: Any products derived from the use of the data provided by the Ministry of Energy and Resources Saskatchewan Mining and Petroleum GeoAtlas must be cited with the layers and date used to create those products. The ‘GeoAtlas’ contains information licensed under the Government of Saskatchewan Standard Unrestricted Use Data License (Version 2.0). For Example: Saskatchewan Mining and Petroleum GeoAtlas, Structure Map of the Base of Groundwater Protection in Southeast Saskatchewan, June 2020. We would also like to thank the Water Security Agency for their support and data necessary to complete this project. Specific datasets are referenced below.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 567914.1974
YMin: 5427985.7724
XMax: 765937.0895
YMax: 5541841.9546
Spatial Reference: 2151  (2957)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [78, 78, 78, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [78, 78, 78, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• ZLEVEL ( type: esriFieldTypeDouble, alias: ZLEVEL )
• LAYER ( type: esriFieldTypeString, alias: LAYER, length: 255 )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
